It was 3:15 in the wee hours; the office was empty. The lights were off. Everyone was asleep. But the servers were awake. Behind this scene, several requests were moving through the network as usual. Nothing seemed wrong. The firewall was doing its job as usual, checking connections and blocking anything that looked suspicious.
Then, one request came in. It didn’t look fatal. The firewall let it pass. A few seconds later, another request arrived, and so on again and again. The attacker was not trying to break into the network. They were looking for something much more valuable.
They started with the login page. Then the search box. Then an API endpoint. The requests seemed like normal web traffic. But hidden inside them was a carefully crafted attack. The firewall couldn’t see the actual issue. And that’s because not every cyberattack tries to break through the network. Some attacks walk straight through it and target the application instead.
And this is where a Web Application Firewall, abbreviated as WAF, comes in. A firewall and a WAF may seem like two versions of the same security tool, but they secure different parts of your digital environment. A firewall controls and filters network traffic, while a WAF examines web requests and helps secure applications from attacks such as SQL injection, cross-site scripting, and other application-layer threats.
So, here the main question is: if the firewall is already shielding the network, why do you need a WAF? And more importantly, can a WAF be an alternative to a firewall, or need both? This blog will cover the answers to all questions.
What is a WAF?
WAF refers to a web application firewall that stands for a hardware appliance, virtual appliance, or cloud-based service. It resides in front of web-facing applications to find and secure against a variety of malicious attacks. A WAF is generally concentrated on Layer 7 web application traffic and secures applications in internet-facing zones of the network.
A WAF can use several techniques to understand whether traffic should be allowed to pass through to an application or should be blocked. Some of those techniques are part of a negative security model that is based on block lists of known signatures, and some belong to a positive security model that is based on allow lists driven by machine learning and behavior-based algorithms.
Most WAFs depend on negative security models only. Some modern WAFs use a combination of an affirmative security model with a negative security model.
How Does a WAF Work?
WAF generally functions as a reverse proxy by serving as an intermediary that shields the web app server against malicious clients. A WAF operates at the application layer of the OSI model. Clients don’t engage directly with the backend system; their communication is only with the WAF. This process remains unseen to clients, who perceive it as an effortless operation.
All incoming client requests and outgoing server responses traverse through the WAF, enabling it to analyse and block any traffic violating security policies.

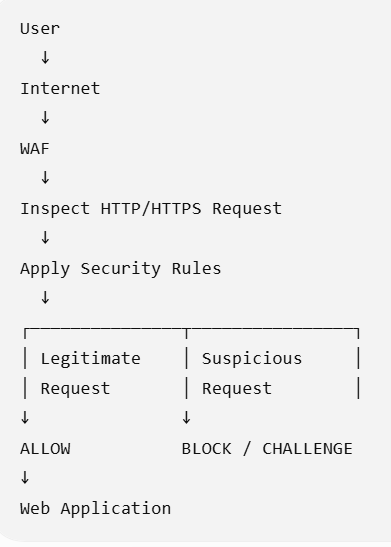

What happens when a request reaches a WAF? Let’s have a look at the workflow below:
Types of WAF
A WAF can secure the same web application in different ways depending on where it is deployed. Some WAFs run in the cloud and sit between users and the application, while others run directly on a server or are deployed as dedicated hardware in an organization's infrastructure. The three common deployment models are cloud-based WAF, software-based WAF, and hardware-based WAF.
Cloud-Based WAF
A cloud-based WAF is a managed service hosted by a cloud or security provider. Instead of installing and maintaining the WAF on your own server, the provider operates the underlying infrastructure, security rules, threat intelligence, and scaling capabilities.
Software-Based (Host-Based) WAF
A software-based WAF, also called a host-based WAF, is installed directly on the web server or within the application's hosting environment.
Unlike a cloud WAF, which typically filters traffic before it reaches the origin infrastructure, a host-based WAF runs much closer to the application.
Hardware-Based (Network-Based) WAF
A hardware-based WAF, also called a network-based WAF, is deployed as a dedicated physical appliance within an organization's infrastructure. Instead of operating as software on an individual web server or being hosted by a cloud provider, the WAF runs on dedicated hardware and is positioned within the network path between users and web servers.
What is a Firewall?
A firewall refers to a network security device that controls, monitors, and filters an organization’s incoming and outgoing network traffic based on its pre-established security policies. It is a solid barrier between a private internal network and the public internet. Its main objective is to enable secure traffic while restricting unwanted traffic in order to secure an organization's confidential data.
How Does a Firewall Work?
A firewall works like a security checkpoint between your network and the outside world. Each connection attempting to enter or leave the secured network is evaluated against a predefined set of rules. Based on those rules, the firewall decides whether the traffic should be allowed, rejected, or dropped.
Think of it this way: when a request reaches your infrastructure, the firewall first asks, “Where is this traffic coming from, where is it going, and is this type of connection allowed or not?
For example, suppose your web server accepts HTTPS traffic through port 443 but does not need SSH access from the public internet. The firewall can allow legitimate HTTPS connections while blocking unsolicited attempts to reach other ports.
What Happens When Traffic Reaches a Firewall?
Imagine a user trying to access your website.
User → Internet → Firewall → Web Server
The connection first reaches the firewall. Later on, the firewall checks the request against its configured security policy. If the connection matches an allowed rule:
Allow → Forward the traffic
If it violates a blocking rule:
Deny → Stop the traffic
Let’s understand it more clearly:
HTTPS / TCP 443 → ALLOW
SSH / TCP 22 from trusted IP → ALLOW
Unknown inbound port → BLOCK
Blocked IP address → BLOCK
Types of Firewall
Not every firewall secures the network in the same way. Some sit at the edge of the whole infrastructure, some shield an individual server, while others are designed for allocated and cloud environments. The three main types of firewalls to understand are as follows:
Network Firewall
A network firewall shields a complete network or a defined network segment by controlling traffic moving between different networks. It is generally housed at the boundary between a trusted internal environment and an untrusted network like the public internet.
Host-Based Firewall
A host-based firewall works at the individual device or server level. Instead of protecting an entire network from one central location, it runs directly on the host it is protecting.
Think of it as putting a security guard at the door of every individual room, rather than relying only on the guard at the building entrance.
Distributed Firewall
A distributed firewall takes the idea of host-level protection and applies it across a larger, centrally managed environment. Instead of depending on one physical firewall appliance to inspect all traffic, security policies can be enforced closer to workloads, such as virtual machines, containers, or cloud workloads.
This approach is mainly crucial in virtualised and cloud environments, where applications and workloads may be spread across various hosts, networks, availability zones, or data centers.
Differentiate Between a Network Firewall & WAF
| Feature | Network Firewall | WAF |
|---|---|---|
| Primary Work | Locks down the network perimeter to block unauthorized users. | Protects public-facing websites, APIs, and web apps from malicious requests. |
| How it looks | Glances at the envelope, IP addresses, port numbers, and basic connection rules. | Reads the letter inside: whether it is HTTP headers, URL parameters, or code payloads. |
| Where it works | Network & Transport layers, 3 & 4 | Application layer, Layer 7 |
| What it stops | Network overload attacks, DDoS, port scanning, spoofed IPs, unauthorized network access. | Web exploits like SQL Injection, Cross-Site Scripting, malicious bots, and web scraping. |
| How rules work | Blocklist approach: blocks known bad ports or IPs, enables almost everything else. | Hybrid approach: blocks known exploit patterns and learns general web behavior to block the rest. |
| Where it lives | On the network edge, right at the entry point to your infrastructure. | Directly in front of web servers, as a cloud service, reverse proxy, or software plugin. |
Firewall vs WAF: What All Attacks Do Each Stop
| Attack/Threat | Firewall | WAF |
|---|---|---|
| Port Scanning | ✅ | ❌ |
| Unauthorised network access | ✅ | ❌ |
| IP-based blocking | ✅ | ✅ |
| SQL Injection | Limited/❌ | ✅ |
| Malicious HTTP requests | Limited | ✅ |
| Internal network segmentation | ✅ | ❌ |
| HTTP-layer DDoS | Limited | ✅ |
Conclusion
We believe that the entire blog post has provided enough information to understand the difference between a Firewall and a WAF. But still, the main question is: who wins the battle between them?
Neither, and that’s exactly the right answer.
A network firewall stands at the front gate, monitoring who and what can enter your infrastructure. A WAF takes the next position, looking deeper into web requests to identify attacks hiding inside. One secures the network, while the other shields the application.
Currently, in a cyber threat environment, depending on just one layer can leave attackers with another door to knock on. A firewall can stop unauthorized network access, but it may not recognize a carefully crafted SQL injection travelled over an allowed HTTPS connection.
Likewise, a WAF protects web applications but cannot replace the broader network controls provided by a firewall. That’s why the actual answer is not Firewall vs. WAF. It is Firewall + WAF. Yes, it makes sense.
Because when the next attack arrives in the wee hours, you don’t want to find out that your security was securing the door while the attacker was already knocking on the application.
